AM Technologies Plant List

Digital Light Synthesis™

Carbon M2 Printers – 4 Printers

Lead time: 4 days
Build Platform (mm): 189 x 118 x 326
Accuracy: to ± 0.1%

Pixel resolution: 75 μm

Surface structure: Parts printed with Digital Light Synthesis™ are much more like injection-moulded parts. Digital Light Synthesis™ produces consistent and predictable mechanical properties, creating parts that are solid on the inside.

Request Quote

DLS Materials and Data Sheets

RPU 70

Tough, moderately heat resistant material with ABS-like properties including excellent durability.

MPU 100

Medical-grade Polyurethane. A unique combination of mechanical strength, biocompatibility, and sterilisability.

FPU 50

Impact, abrasion and fatigue resistant semi-rigid material that is a good choice for parts that must withstand repetitive stresses such as living hinges or friction fits.

EPU 40

High-performance polyurethane elastomer, with high elasticity and tear resistance.

CE 221

A high-performance material with excellent strength, rigidity and temperature resistance (231°C)

EPX 82

For functional toughness, rigidity and temperature resistance.

UMA 90

Single cure resin with enhanced toughness, appropriate for use in prototypes, jigs and fixtures.

RPU 130

Strong, tough, and heat resistant. With a move towards sustainability, 30% of RPU 130’s composition comes from plant-based sources.

LOCTITE® 3D IND405 Clear

High elongation, high toughness, outstanding impact resistance, excellent clarity and excellent surface finish.

Multi Jet Fusion

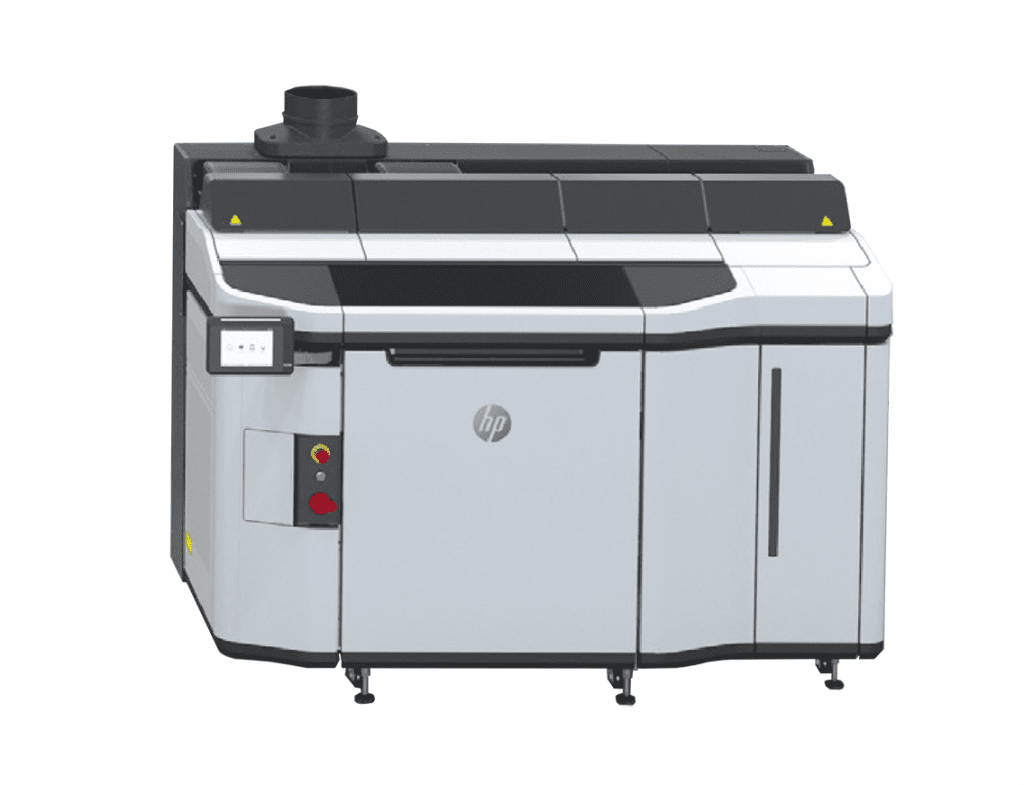

HP Multi Jet Fusion 5200 – 1 Printer

Lead time: 1 – 4 days
Build platform (mm): 380 x 284 x 380
Accuracy: to ± 0.3%
Print resolution: 1200 dpi
Wall thickness: 0.08 mm
Surface structure: Smooth and uniform with no support structures.

MJF parts are robust and suitable for end-use. Our post-processing includes PolyShot Surfacing to achieve a satin finish, and dye options in 170 colours.

Request Quote

HP Multi Jet Fusion 4200 – 1 Printer

Lead time: 1 – 4 days
Build platform (mm): 380 x 284 x 380
Accuracy: to ± 0.3%
Print resolution: 1200 dpi
Wall thickness: 0.08 mm
Surface structure: Smooth and uniform with no support structures.

MJF parts are robust and suitable for end-use. Our post-processing includes PolyShot Surfacing to achieve a satin finish, and dye options in 170 colours.

Request Quote

Post Processing Stations – 2 Stations

Lead time: 1 – 4 days
Our post-processing includes also includes PolyShot Surfacing to achieve a satin finish, and dye options in 170 colours.

Request Quote

POLYSHOT SURFACING

DYEMANSION POWERSHOT S

Lead time: 4 days
Surface structure: PolyShot Surfacing (PSS) is an efficient process to achieve excellent end-use part finishes. No materials are removed, and the process is effective across all geometries. Cycle times are short, and capacity is substantial, enabling cost efficiencies to be passed on to the customer.

Most effective on PA11 and PA12 Nylons.

Request Quote

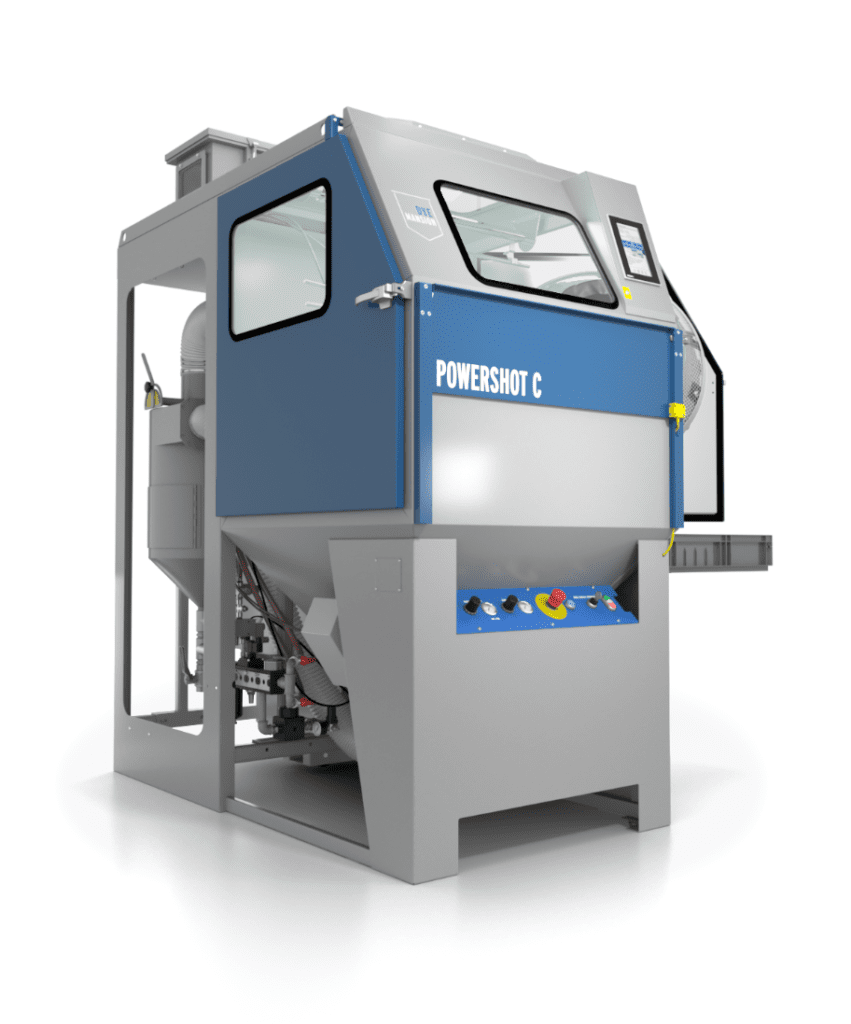

DYEMANSION POWERSHOT C

Lead time: 4 days
Surface structure: PolyShot Surfacing (PSS) is an efficient process to achieve excellent end-use part finishes. No materials are removed, and the process is effective across all geometries. Cycle times are short, and capacity is substantial, enabling cost efficiencies to be passed on to the customer.

Most effective on PA11 and PA12 Nylons.

Request Quote

DYING AND COLOURING

DyeMansion DM60 – 1 machine

Lead time: 1 – 4 days
Colouring: Over 170 RAL colours. Can be applied in conjunction with the PowerShot process to achieve a smooth, coloured finish similar to injection moulded parts.

Request Quote

MJF Materials and Data Sheets

PA11 NYLON

A high performance, biocompatible (when finished) slightly flexible, chemical and heat-resistant material suited to highly technical applications.

PA12 NYLON

Robust thermoplastic producing high-density parts with excellent chemical resistance to oils, greases, aliphatic hydrocarbons, and alkalies
